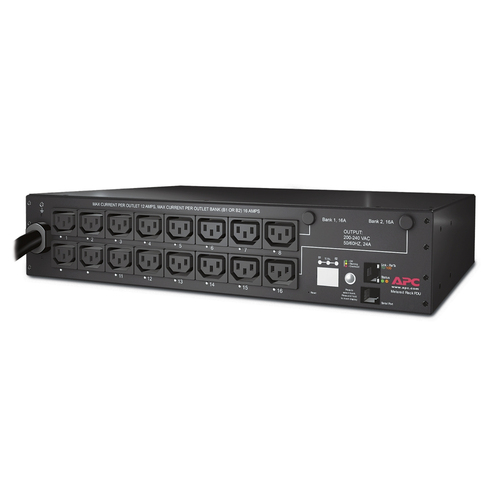

Overview
It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 208V. It includes 16 IEC C13 outlets and a NEMA L6-30P input connection. The PDU has a 2U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
Specifications
Design
| PDU types | Switched |
|---|
| Rack capacity | 2U |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 16 AC outlet(s) |
|---|
| AC outlet types | C13 coupler |
|---|
| Input connection type | NEMA L6-30P |
|---|
Features
| LED indicators | Yes |
|---|
| Cable length | 3.65 m |
|---|
Management features
| Monitoring | Current |
|---|
| Outlet control | Recycle, Turn off |
|---|
Power
| Nominal input voltage | 200; 208; 230 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Maximum current | 30 A |
|---|
| Output voltage | 208 V |
|---|
| Maximum input current per phase | 30 A |
|---|
| Maximum total current draw per phase | 30 A |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | cUL listed; CSA; Industry Canada; PSE; UL listed |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Weight & dimensions
| Width | 445 mm |
|---|
| Depth | 254 mm |
|---|
| Height | 89 mm |
|---|
| Weight | 6.32 kg |
|---|
Packaging data
| Package weight | 8.36 kg |
|---|
| Package width | 514 mm |
|---|
| Package depth | 514 mm |
|---|
| Package height | 146 mm |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
|---|
| Removable battery | Yes |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Country of origin | India |
|---|
| Customs product code (TARIC) | 8537109899 |
|---|
| Total carbon footprint (kg of CO2e) | 2004.7916791594 |
|---|
