Overview

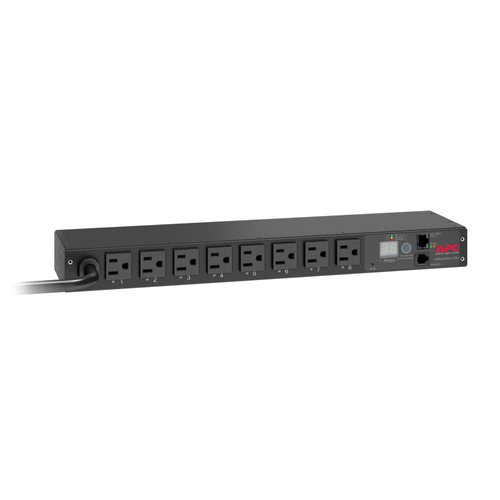

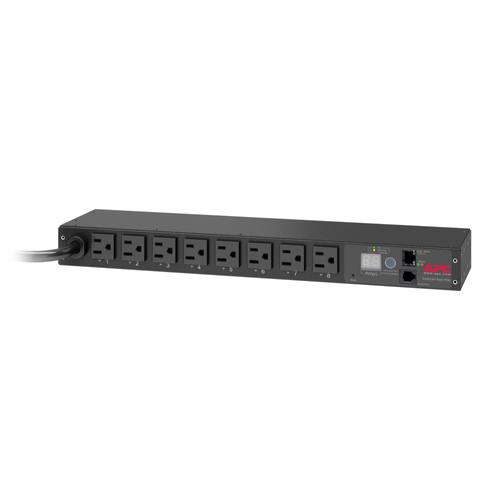

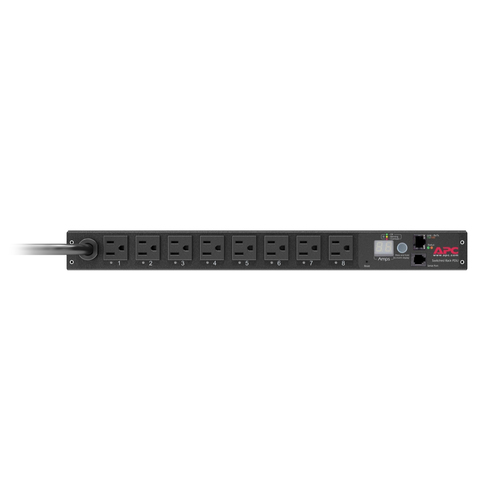

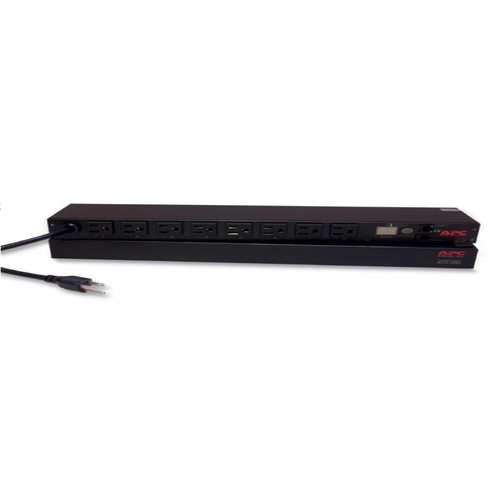

This APC Switched Rack PDU AP7900B power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)5-15. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Specifications
Design
| PDU types | Switched |
|---|
| Rack capacity | 1U |
|---|
| Mounting | Horizontal |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 8 AC outlet(s) |
|---|
| Power plug | NEMA 5–15P |
|---|
| AC outlet types | NEMA 5–15P |
|---|
Features
| LED indicators | Yes |
|---|
| Cable length | 3.65 m |
|---|
Power
| Nominal input voltage | 100 - 120 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Maximum current | 15 A |
|---|
| Nominal output voltage | 120 V |
|---|
| Maximum total current draw per phase | 15 A |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | UL/cUL, PSE, FCC Part 15 Class A, IC
ES-003 Class A, VCCI Class A |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
| Operating temperature (T-T) | 23 - 113 °F |
|---|
Weight & dimensions
| Width | 444.5 mm |
|---|
| Depth | 108 mm |
|---|
| Height | 44.5 mm |
|---|
| Weight | 2.26 kg |
|---|
Packaging data
| Package weight | 3.4 kg |
|---|
Logistics data
| Total carbon footprint (kg of CO2e) | 915.89 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
