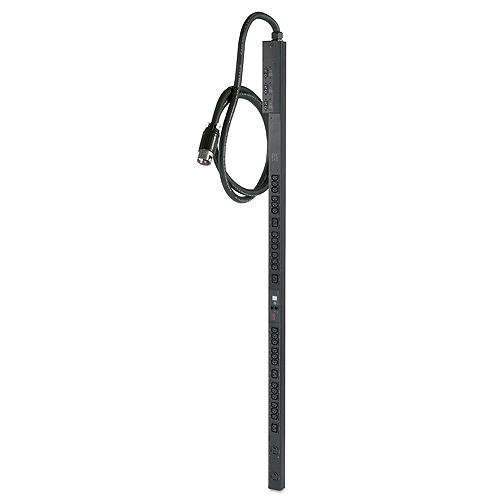

APC AP7899B power distribution unit (PDU) 30 AC outlet(s) 0U Black
Part number AP7899B
RACK PDU METERED 208V 0U 14.4KW 24XC13 4XC19 2XL6-30R 10CORD
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7899B
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| PDU types | Metered |
|---|---|
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 30 AC outlet(s) |
|---|---|
| Power plug | CS8365 |
| AC outlet types | NEMA L6-30R, C13 coupler, C19 coupler |
| LED indicators | Yes |
|---|---|
| Cable length | 3.05 m |
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 50 A |
| Load capacity | 14400 VA |
| Maximum total current draw per phase | 40 A |
| Power protection features | Overload |
| Compliance certificates | RoHS |
|---|---|
| Certification | REACH |
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Operating temperature (T-T) | 23 - 113 °F |
| Width | 56 mm |
|---|---|
| Depth | 95 mm |
| Height | 1778 mm |
| Weight | 10.4 kg |
| Cables included | RS-232 |
|---|
| Package weight | 14.3 kg |
|---|---|
| Package width | 311 mm |
| Package depth | 79 mm |
| Package height | 2057 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
