Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

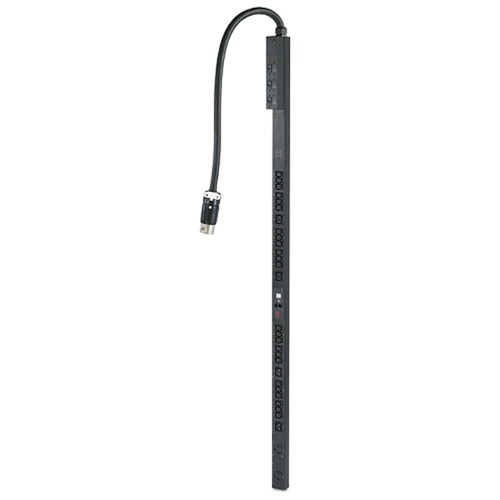

APC AP7869B power distribution unit (PDU) 30 AC outlet(s) 0U Black
Part number AP7869B
RACK PDU METERED 208V 0U 14.4KW 24XC13 4XC19 2XL6-30R
- Three-phase Metered 0U Black

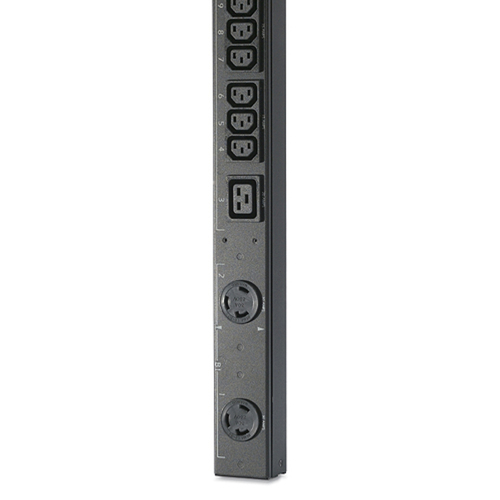

- 30 AC outlet(s) C13 coupler, C19 coupler, NEMA L6-30R
- 14400 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7869B
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
| PDU types | Metered |
|---|---|
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 30 AC outlet(s) |
|---|---|
| Power plug | CS8365 |
| AC outlet types | C13 coupler, C19 coupler, NEMA L6-30R |
| Cable length | 0.91 m |
|---|---|
| Compatible products | FCC Part 15 class A ICES-003 UL 60950 |
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 50 A |
| Nominal output voltage | 208 V |
| Load capacity | 14400 VA |
| Number of phases | 3 |
| Maximum power | 14400 W |
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Operating temperature (T-T) | 23 - 113 °F |
| Width | 56 mm |
|---|---|
| Depth | 95 mm |
| Height | 1778 mm |
| Weight | 10.4 kg |
| Manual | Yes |
|---|---|
| Packaging content | Cord retention bracket(s) Documentation CD Installation guide Rack Mounting brackets RS-232 configuration cable Toolless Mounting Kit |
| Package weight | 14.3 kg |
|---|---|
| Package width | 79 mm |
| Package depth | 311 mm |
| Package height | 2057 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
