Overview

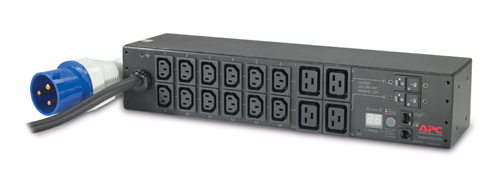

APC Metered Rack PDU , Input: 230V , Input Connections: IEC 309 32A 2P+E , Cord Length: 12 feet ( 3.66 meters ) , Output: 200V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual
Specifications
Design
| Product colour | Black |
|---|
Ports & interfaces
| Input connection type | IEC 309 32A 2P+E |
|---|
| Output connections | 12xIEC 320 C13
4xIEC 320 C19 |
|---|
Features
| Cable length | 3.66 m |
|---|
Power
| Nominal input voltage | 230 V |
|---|
| Maximum input current per phase | 32 A |
|---|
| Maximum total current draw per phase | 32 A |
|---|
Certificates
| Certification | C-tick, CCC, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 444 mm |
|---|
| Depth | 112 mm |
|---|
| Height | 88 mm |
|---|
| Weight | 3.36 kg |
|---|
Packaging data
| Package weight | 5.41 kg |
|---|
| Package width | 508 mm |
|---|
| Package depth | 368 mm |
|---|
| Package height | 140 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
