APC BY SCHNEIDER ELECTRIC

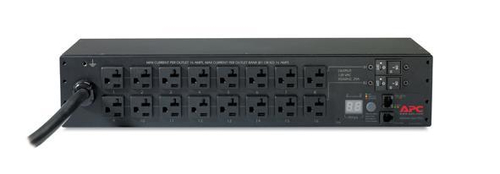

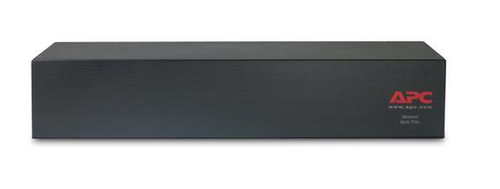

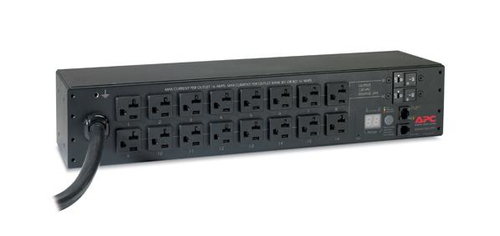

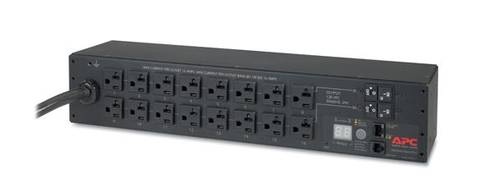

APC AP7802B power distribution unit (PDU) 16 AC outlet(s) 2U Black

Part number AP7802B

RACK PDU METERED 2U 30A 120V 16 5-20

Metered 2U Black
16 AC outlet(s) NEMA 5–20R
14400 W

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: AP7802B
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

AP7802BFeatures

Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20

Resettable circuit breakers

Enables a quick recovery from overload events.

Marketing Features

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring

Status available to customers both in the data center and remotely

Agility

Wide range of input and output connections

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Availability

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Flash Upgradeable

Specifications

Design
PDU types	Metered
Rack capacity	2U
Product colour	Black

Ports & interfaces
AC outlets quantity	16 AC outlet(s)
AC outlet types	NEMA 5–20R
Input connection type	NEMA L5-30P

Features
LED indicators	Alarm
Cable length	3.66 m

Management features
Monitoring	Current

Power
Nominal input voltage	100 - 120 V
AC input frequency	50 - 60 Hz
Maximum current	30 A
Nominal output voltage	120 V
Load capacity	2880 VA
Maximum total current draw per phase	24 A
Power protection features	Overload
Maximum power	14400 W

Certificates
Compliance certificates	RoHS
Certification	cUL Listed, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL Listed

Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m

Weight & dimensions
Width	444 mm
Depth	112 mm
Height	88 mm
Weight	3.36 kg

Packaging data
Package weight	4.44 kg
Package width	508 mm
Package depth	368 mm
Package height	140 mm

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
