Products › Power & Rack Equipment

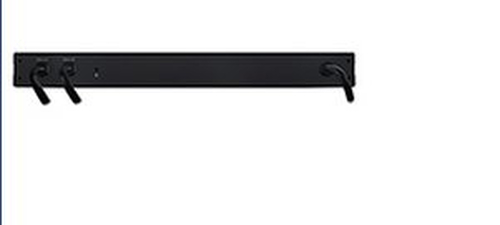

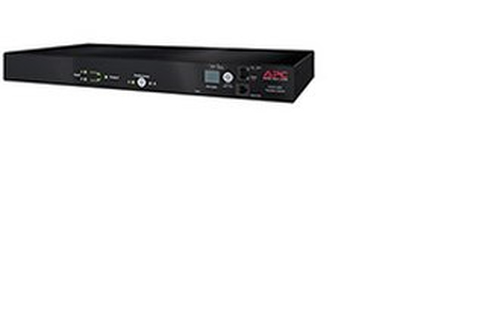

APC Rack-mount Transfer Switches power distribution unit (PDU) 1 AC outlet(s) Black
Part number AP7722A
RACK ATS 230V 16A 2IEC 309IN IEC 309OUT
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7722A
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Dual Input Power Sources
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.
Specifications
| PDU types | Switched |
|---|---|
| Mounting | Horizontal |
| Product colour | Black |
| AC outlets quantity | 1 AC outlet(s) |
|---|---|
| Input connection type | IEC 309 16A 2P+E |
| Output connections | (1) IEC 309 16A (2P+E) |
| Cable length | 0.91 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Load capacity | 3840 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Compliance certificates | RoHS |
|---|---|
| Certification | C-tick, CE, EN 55022 Class A, EN 55024, GOST, TUV, VCCI Class A, REACH |
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 0 - 15000 m |
| Width | 432 mm |
|---|---|
| Depth | 236 mm |
| Height | 44 mm |
| Weight | 4.21 kg |
| Package weight | 5.95 kg |
|---|---|
| Package width | 600 mm |
| Package depth | 349 mm |
| Package height | 114 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
