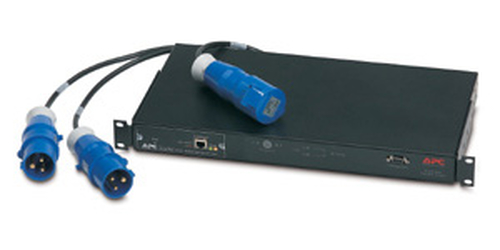

APC Rack Automatic Transfer Switch, 16A, 230V power distribution unit (PDU) Black
Part number AP7722
RACK ATS 16A 230V 2 IEC 309 IN 1 IEC 309 OUT
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7722
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Rack Automatic Transfer Switch, Input : 230V , Input Connection Type : IEC 309 , Cord Length : 3 feet ( 0.91 meters ) , Output : 230V , Output Connections : (1)IEC 309
Features - Information Displays, Quick Transfer Rate, Remote Management Capabilities
Includes - Rack Mounting Brackets, User Manual
Output:
Output Voltage(s) (main only) - 230 V
Maximum Total Current Draw per Phase - 16 A
Output Connections - (1)IEC 309
Cord Length - 3 feet ( 0.91 meters )
Input:
Nominal input voltage - 230 V
Input frequency - 50/60 Hz
Input Connection Type - IEC 309
Cord Length - 3 feet ( 0.91 meters )
Acceptable Input Voltage - 200-240 VAC
Maximum Line Current per phase - 16.0 A
Maximum Input Current per phase - 16.0 A
Load Capacity - 3840
Specifications
| Product colour | Black |
|---|
| I/O ports | Output Connections -(1)IEC 309 Input Connection Type - IEC 309 |
|---|
| Cable length | 2 m |
|---|
| Nominal input voltage | 230 V |
|---|---|
| Output voltage | 230 V |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 431.8 mm |
|---|---|
| Depth | 228.6 mm |
| Height | 44.5 mm |
| Weight | 4.64 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
