Overview

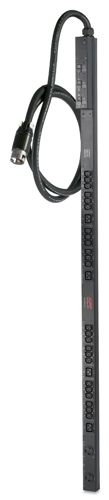

Basic Rack PDU 14 AP7599. 4 kW solution for high density installations.
Specifications
Design
| Product colour | Black |
|---|
Ports & interfaces
| Input connection type | CS8365 |
|---|
| Output connections | 24x IEC 320 C13
4x IEC 320 C19
2x NEMA L6-30R |
|---|
Features
| Cable length | 3.05 m |
|---|
Power
| Nominal input voltage | 208 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Nominal output voltage | 208 V |
|---|
| Load capacity | 14400 VA |
|---|
| Maximum input current per phase | 50 A |
|---|
Certificates
| Certification | cUL Listed,CSA,METI Denan,UL 60950,UL Listed |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 55 mm |
|---|
| Depth | 95 mm |
|---|
| Height | 1778 mm |
|---|
| Weight | 9.86 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
