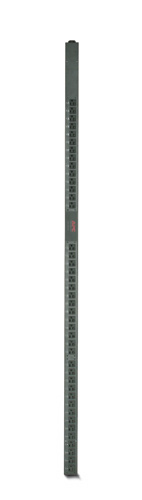

APC Rack PDU,Basic,ZeroU,5.7kW,120V power distribution unit (PDU) Black
Part number AP7592
BASIC PDU 120V 5.7KW L21-20P 0U RM 0U 42X5-20R 10FT
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7592
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
Toolless Mounting Capabilities
Units do not require additional tools to mount into APC NetShelter VX, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter VX enclosures.
Specifications
| Product colour | Black |
|---|
| Input connection type | NEMA L21-20P |
|---|---|
| Output connections | 42x NEMA 5-20R |
| Cable length | 3.05 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 120 V |
| Load capacity | 5700 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
| Certification | cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed, RoHS |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1778 mm |
| Weight | 5.57 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
