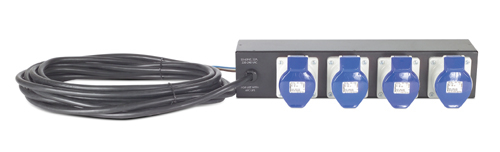

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power distribution unit (PDU) 4 AC outlet(s) Black
Part number AP7586
RACK PDU EXTENDER BASIC 2U 32A 230V 4 IEC 309-32
- Basic 2U Black
- 4 AC outlet(s)
- 7680 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7586
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
The most mounting options in the market.
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.
Specifications
| PDU types | Basic |
|---|---|
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
| AC outlets quantity | 4 AC outlet(s) |
|---|---|
| I/O ports | Hard Wire 3-wire (4) IEC 309 |
| Input connection type | Hard Wire 3-wire |
| Output connections | (4) IEC 309 |
| Cable length | 8.53 m |
|---|
| Nominal input voltage | 230 V |
|---|---|
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum power | 7680 W |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 45% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 437 mm |
|---|---|
| Depth | 89 mm |
| Height | 89 mm |
| Weight | 4.09 kg |
| Package weight | 5 kg |
|---|---|
| Package width | 521 mm |
| Package depth | 521 mm |
| Package height | 152 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
