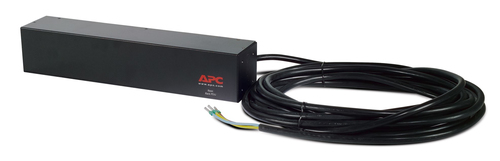

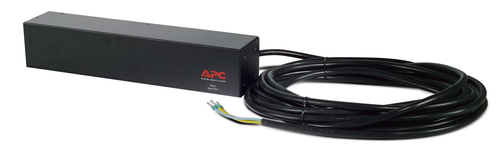

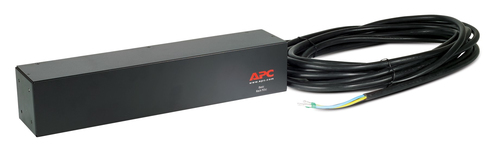

Overview
The most mounting options in the market.
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.
Specifications
Design
| PDU types | Basic |
|---|
| Rack capacity | 2U |
|---|
| Mounting | Horizontal |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 4 AC outlet(s) |
|---|
| AC outlet types | C19 coupler |
|---|
| I/O ports | (4) IEC 320 C19
Hard Wire 3-wire |
|---|
| Input connection type | Hard Wire 3-wire |
|---|
| Output connections | (4) IEC 320 C19 |
|---|
Features
| Cable length | 8.53 m |
|---|
Power
| Nominal input voltage | 230 V |
|---|
| Nominal output voltage | 230 V |
|---|
| Output voltage | 230 V |
|---|
| Load capacity | 7680 VA |
|---|
| Maximum power | 7680 W |
|---|
Certificates
| Certification | CE,VDE |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
Weight & dimensions
| Width | 437 mm |
|---|
| Depth | 89 mm |
|---|
| Height | 89 mm |
|---|
| Weight | 4.09 kg |
|---|
Packaging data
| Package weight | 5 kg |
|---|
| Package width | 521 mm |
|---|
| Package depth | 521 mm |
|---|
| Package height | 152 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
