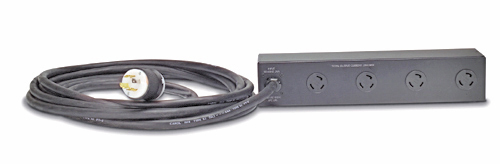

APC Rack PDU Extender, Basic, 2U, 30A, 100/120/200/208V power distribution unit (PDU) Black
Part number AP7583
BASIC PDU 120V 30A 2U RM 4XL5-30
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7583
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| Product colour | Black |
|---|
| Input connection type | NEMA L14-30P |
|---|---|
| Output connections | 4x NEMA L5-30R |
| Cable length | 8.53 m |
|---|
| AC input frequency | 50 - 60 Hz |
|---|---|
| Nominal output voltage | 120 V |
| Load capacity | 4992 VA |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 24 A |
| Certification | cUL Listed,CSA C22.2 No. 107.1,METI Denan,UL 1778,UL Listed, RoHS |
|---|
| Width | 437 mm |
|---|---|
| Depth | 89 mm |
| Height | 89 mm |
| Weight | 6.36 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
