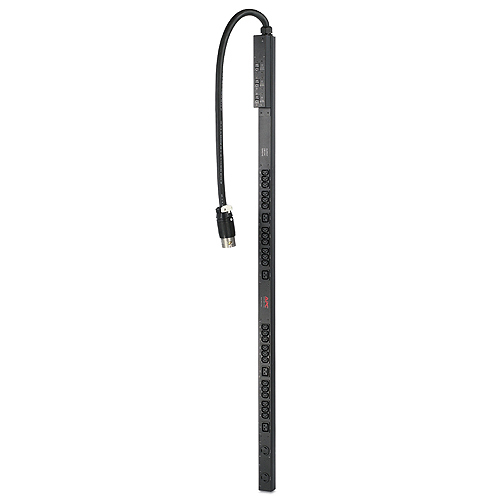

APC AP7569 power distribution unit (PDU) Black
Part number AP7569
RACK PDU BASIC PDU 208V 0U 2L6-30R 24XC13 4XC19 14.4KW 3IN
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7569
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Toolless Mounting Capabilities
Units do not require additional tools to mount into APC NetShelter Enclosure, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Resettable circuit breakers
Enables a quick recovery from overload events.
Specifications
| Product colour | Black |
|---|
| Input connection type | CS8365 |
|---|---|
| Output connections | 24x IEC 320 C13 4x IEC 320 C19 2x NEMA L6-30R |
| Cable length | 0.91 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| Nominal output voltage | 208 V |
| Load capacity | 14400 VA |
| Maximum input current per phase | 50 A |
| Certification | cUL Listed,CSA,METI Denan,UL 60950,UL Listed |
|---|
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 55 mm |
|---|---|
| Depth | 95 mm |
| Height | 1778 mm |
| Weight | 7.32 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
