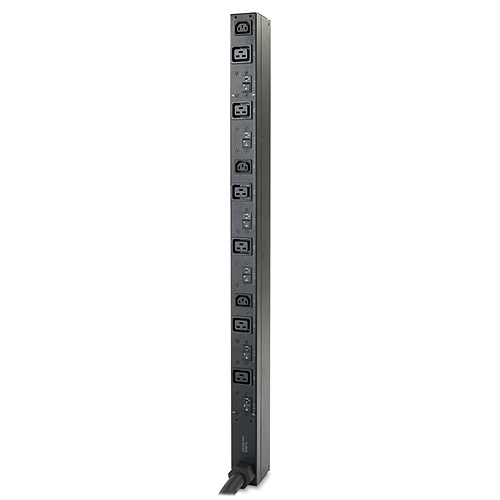

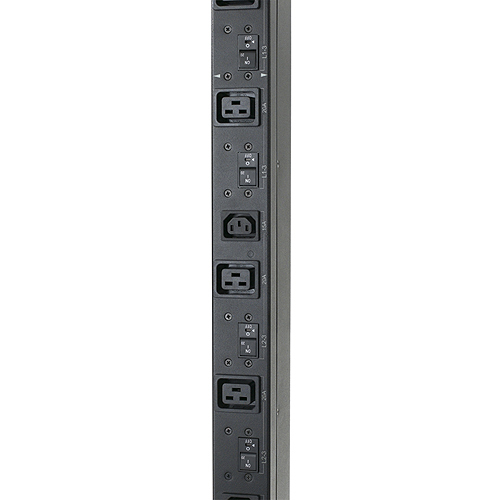

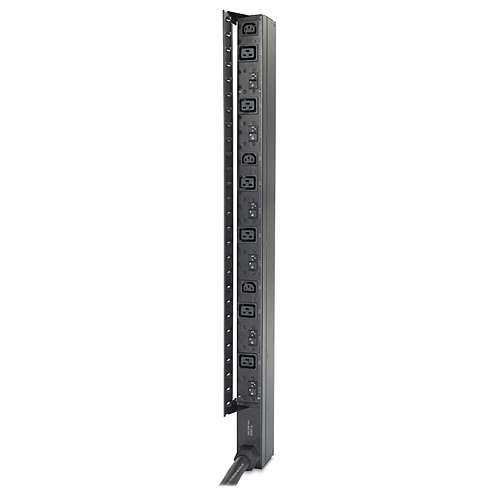

APC AP7567A power distribution unit (PDU) 9 AC outlet(s) 0U Black
Part number AP7567A
RACK PDU BASIC ZERO U 14.4KW 208 V 6 C19 3 C13 HIGH TEMP
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7567A
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
Marketing Features
- Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
- Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
- Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
- Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| PDU types | Basic |
|---|---|
| Rack capacity | 0U |
| Product colour | Black |
| AC outlets quantity | 9 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | CS8365 |
| Cable length | 1.83 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 47/63 Hz |
| Maximum current | 50 A |
| Output voltage | 208 V |
| Maximum total current draw per phase | 40 A |
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL Listed, CSA C22.2 No. 60950-1-03, METI Denan, UL 60950-1, UL Listed |
| Operating temperature (T-T) | -5 - 60 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Operating temperature (T-T) | 23 - 140 °F |
| Width | 55 mm |
|---|---|
| Depth | 88 mm |
| Height | 927 mm |
| Weight | 7.26 kg |
| Package weight | 8.76 kg |
|---|---|
| Package width | 298 mm |
| Package depth | 83 mm |
| Package height | 1097 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
