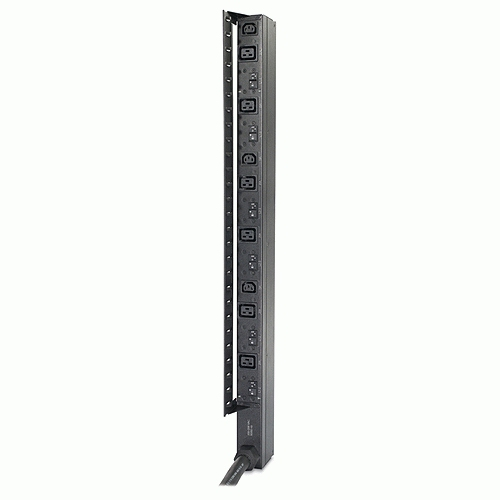

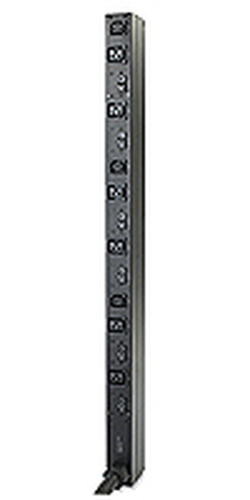

APC Rack PDU, Basic, Zero U power distribution unit (PDU) Black
Part number AP7567
RACK PDU BASIC 0U 14.4KW 208V (6)C19 (3)C13
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7567
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
-High Power Density.
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| Product colour | Black |
|---|
| Input connection type | Hubbell CS8365C |
|---|---|

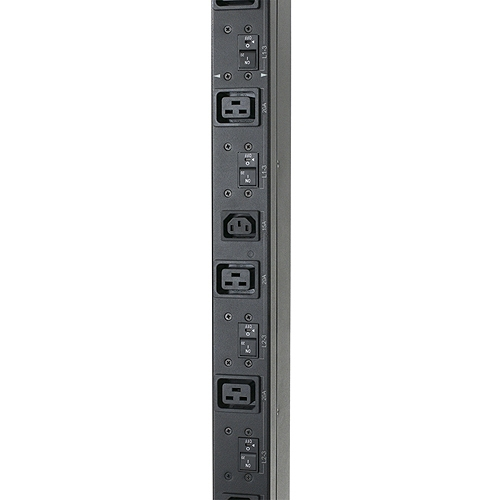

| Output connections | (3) IEC 320 C13 (6) IEC 320 C19 |
| Cable length | 1.83 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 47/63 Hz |
| Nominal output voltage | 208 V |
| Maximum input current per phase | 50 A |
| Maximum total current draw per phase | 20 A |
| Certification | cUL,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL |
|---|
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 55 mm |
|---|---|
| Depth | 88 mm |
| Height | 927 mm |
| Weight | 7.25 kg |
