Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

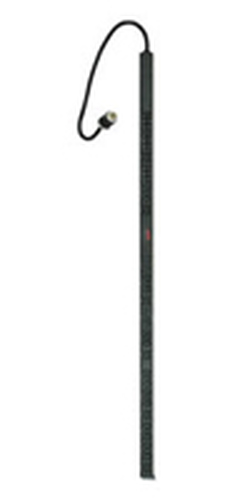

APC Basic Rack 5.7k VA PDU power distribution unit (PDU) 42 AC outlet(s) 0U Black
Part number AP7564
AP7564 PDU BASIC 120/208V 5.7KW 0U RM 36XC13 6XC19
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7564
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
-Includes: Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
-Multi-branch power input.
-Toolless mounting capability.
-Vertical mounting capability.
Specifications
| PDU types | Basic |
|---|---|
| Rack capacity | 0U |
| Product colour | Black |
| AC outlets quantity | 42 AC outlet(s) |
|---|---|
| Power plug | NEMA L21-20P |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | -(36) IEC 320 C13. -(6) IEC 320 C19. |
| Cable length | 0.91 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 208 V |
| Load capacity | 5700 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1778 mm |
| Weight | 5.45 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
