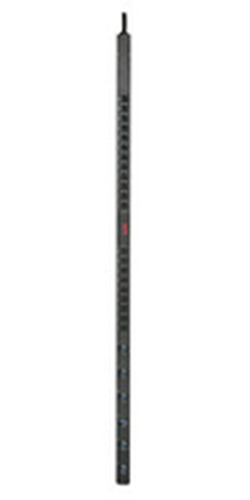

APC Rack PDU,Basic, Zero U,5.7kW,120&208V power distribution unit (PDU) Black
Part number AP7563
BASIC PDU 120/208V 7.2KW 0U RM 21X5-20 6XL6-20
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7563
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Toolless Mounting Capabilities
Units do not require additional tools to mount into APC NetShelter VX, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter VX enclosures.
Specifications
| Product colour | Black |
|---|
| Input connection type | NEMA L21-20P |
|---|---|
| Output connections | 21x NEMA 5-20R 6x NEMA L6-20R |
| Cable length | 0.91 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Load capacity | 5700 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
| Certification | cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed, RoHS 7b Exemption |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1778 mm |
| Weight | 5.46 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
