APC BY SCHNEIDER ELECTRIC

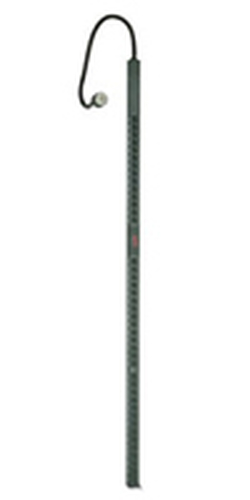

APC Rack PDU, Basic power distribution unit (PDU) Black

Part number AP7562

BASIC PDU 120V 7.2KW 0U RM 42X5-20

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: AP7562
Condition: New
Category: Power & Rack Equipment › Rack Equipment
1GPA category: Hardware

Overview

Agility

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Total Cost of Ownership

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Specifications

Design
Product colour	Black

Ports & interfaces
Input connection type	NEMA L21-20P
Output connections	42x NEMA 5-20R

Features
Cable length	0.91 m

Power
Nominal input voltage	208 V
AC input frequency	50 - 60 Hz
Nominal output voltage	120 V
Load capacity	5700 VA
Maximum input current per phase	20 A
Maximum total current draw per phase	20 A

Certificates
Certification	cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed

Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Width	56 mm
Depth	44 mm
Height	1778 mm
Weight	5.45 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
