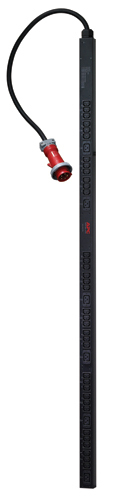

APC AP7557NA power distribution unit (PDU) Black
Part number AP7557NA
RACK PDU BASIC ZERO U 11 KW 230V 36 C13 & 6XC19
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7557NA
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| Product colour | Black |
|---|
| Input connection type | IEC 309 20A 3P+N+E |
|---|---|
| Output connections | 36x IEC 320 C13 6x IEC 320 C19 |
| Cable length | 0.91 m |
|---|
| Nominal input voltage | 400 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 230 V |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
| Certification | UL 60950-1,UL Listed |
|---|
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1778 mm |
| Weight | 5.62 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
