Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

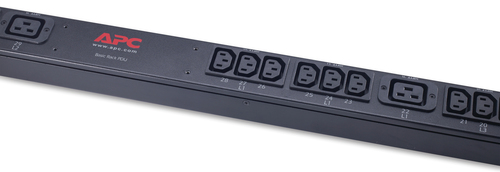

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19 power distribution unit (PDU) 42 AC outlet(s) 0U Black
Part number AP7557
RACK BASIC PDU 11 KW 230V 36 C13 & 6 C19 0U
- Basic 0U Black
- 42 AC outlet(s) C13 coupler, C19 coupler
- 11000 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7557
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Cord Length: 3 feet ( 0.91 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.
- Low Cost Power Distribution.

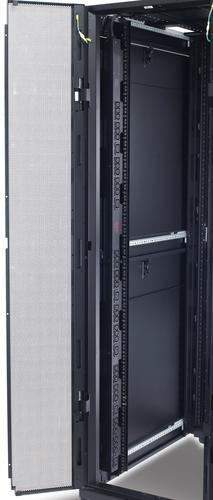

- Vertical mounting capability.
- Toolless mounting capability.
- Multi-branch power input.
Specifications
| PDU types | Basic |
|---|---|
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 42 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 16A 3P+N+PE |
| Output connections | (36) IEC 320 C13 (6) IEC 320 C19 |
| Cable length | 0.91 m |
|---|
| Nominal input voltage | 400 V |
|---|---|
| AC input frequency | 47/63 Hz |
| Nominal output voltage | 230 V |
| Load capacity | 11040 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 11000 W |
| Certification | C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD |
|---|
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.45 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
