Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

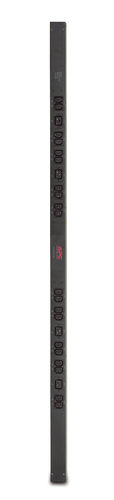

APC Basic Rack PDU power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number AP7554
RACK PDU,BASIC,ZEROU,16A,230V,(20)C13 & (4)C19; IEC309, 10 FT CORD
- Basic 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 3680 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7554
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) that distribute power to rack-mount equipment.
- Single input power source.
- Toolless Mounting Capabilities.
- Vertical Mounting Capabilities.
Specifications
| PDU types | Basic |
|---|---|
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 16A |
| Output connections | 20x IEC 320 C13 4x IEC 320 C19 |
| Cable length | 3.05 m |
|---|
| Nominal input voltage | 230 V |
|---|---|
| Nominal output voltage | 230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
| Certification | CCC, CE, VDE |
|---|
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.57 kg |
| Package weight | 6.48 kg |
|---|---|
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2134 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
