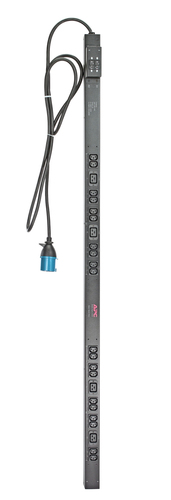

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number AP7553
RACK BASIC PDU 230V 32A IEC309 0U 20XC13 4XC19
- Single-phase Basic 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 7680 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7553
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Specifications
| PDU types | Basic |
|---|---|
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
|---|---|
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| I/O ports | (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A |
| Input connection type | IEC 309 32A |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
| Cable length | 3050 m |
|---|
| Nominal input voltage | 230 V |
|---|---|
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum power | 7680 W |
| Operating temperature (T-T) | -25 - 65 °C |
|---|---|
| Storage temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.57 kg |
| Package weight | 6.48 kg |
|---|---|
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2134 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
