Overview

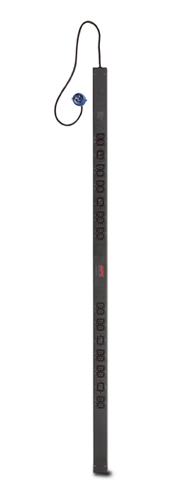

APC Basic Rack PDU, Input: 230V, Input Connections: IEC 309 16A 2P+E, Cord Length: 3 feet ( 0.91 meters ), Output: 230V, Output Connections: IEC 320 C13, IEC 320 C19.
Includes: Installation guide, Toolless Mounting Kit.
Specifications
Design
| PDU types | Basic |
|---|
| Rack capacity | 0U |
|---|
| Mounting | Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
|---|
| AC outlet types | C13 coupler, C19 coupler |
|---|
| I/O ports | IEC-309 16 A plug
(20) IEC-320-C13
(4) IEC-320-C19 |
|---|
| Input connection type | IEC 309 16A 2P+E |
|---|
Features
| Cable length | 0.91 m |
|---|
Power
| Nominal input voltage | 230 V |
|---|
| Nominal output voltage | 230 V |
|---|
| Load capacity | 3680 VA |
|---|
| Maximum input current per phase | 16 A |
|---|
| Maximum power | 3680 W |
|---|
Certificates
| Certification | CCC,CE,GOST,IRAM,VDE |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 55.9 mm |
|---|
| Depth | 43.9 mm |
|---|
| Height | 1619.3 mm |
|---|
| Weight | 4.86 kg |
|---|
Packaging data
| Package weight | 5.77 kg |
|---|
| Package width | 152 mm |
|---|
| Package depth | 127 mm |
|---|
| Package height | 2134 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
