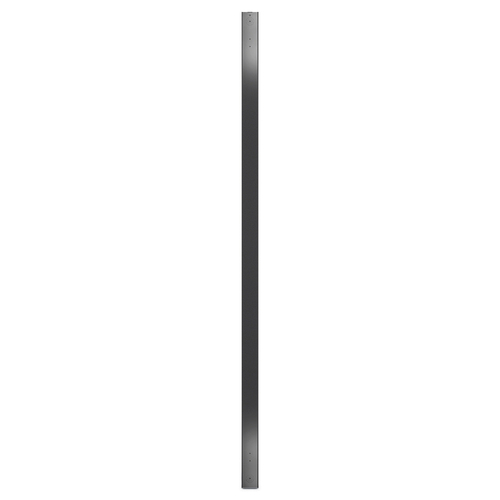

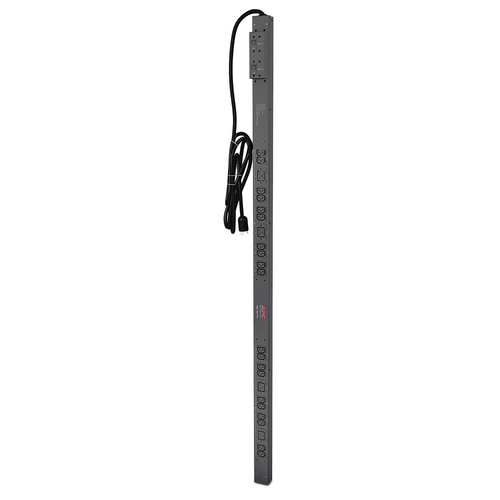

APC Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19
Part number AP7541
POWER DISTRIBUTION UNIT - VERTICAL (0U) - 200 V, 208 V, 230 V, - 20 IEC 60320 C1
Reliable rack power distribution to power servers, switches, and network devices
Vertical Basic PDU is rack mountable
Outlets: (20) C13, (4) C19
Ultralow-profile, space-saving design
Hydraulic-magnetic circuit breakers
0U
10’ power cord with 30A input
2-year APC warranty
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
AP7541
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview
APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit
Specifications
Design
PDU types
Basic
Type
Single-phase
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
24 AC outlet(s)
Power plug
NEMA L6-30P
AC outlet types
NEMA L6-30P
Input connection type
NEMA L6-30P
Output connections
(20) IEC 320 C13
(4) IEC 320 C19
Features
Cable length
3 m
Power
Nominal input voltage
200; 208; 230 V
AC input frequency
50-60 Hz
Maximum current
30 A
Output voltage
200 V; 208 V
Load capacity
4992 VA
Maximum input current per phase
30 A
Maximum total current draw per phase
24 A
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
