Products › Power & Rack Equipment

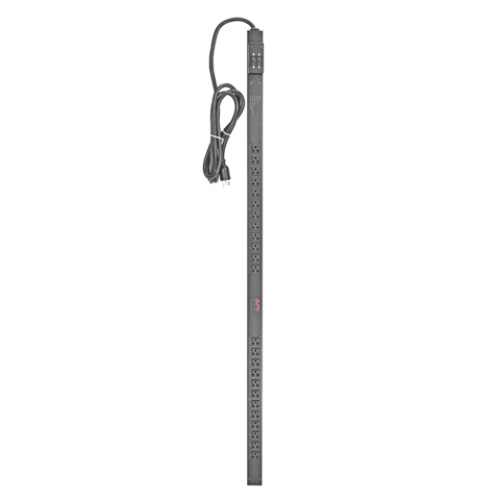

APC AP7532J power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number AP7532J
RACK PDU BASIC ZERO U 30A 100V 24 5-15
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7532J
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Specifications
| PDU types | Basic |
|---|---|
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
|---|---|
| Power plug | NEMA L5-30P |
| AC outlet types | NEMA 5–15R |
| Cable length | 3.05 m |
|---|
| Nominal input voltage | 100 V |
|---|---|
| AC input frequency | 47-63 Hz |
| Maximum current | 30 A |
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 4572 m |
| Non-operating altitude | 0 - 15240 m |
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.58 kg |
| Package weight | 6.48 kg |
|---|---|
| Package width | 127 mm |
| Package depth | 152 mm |
| Package height | 2134 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
