Products › Power & Rack Equipment

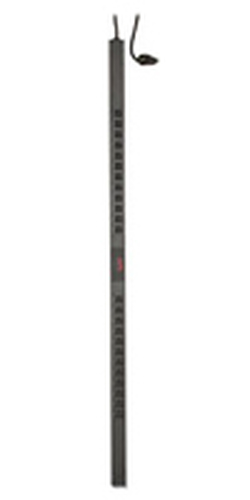

APC Basic Rack 1.92kVA power distribution unit (PDU) Black
Part number AP7530
BASIC PDU 120V 20A 0U RM 24X5-20 NON-RETURNABLE
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7530
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
-Cord Retention Bracket Compatible.

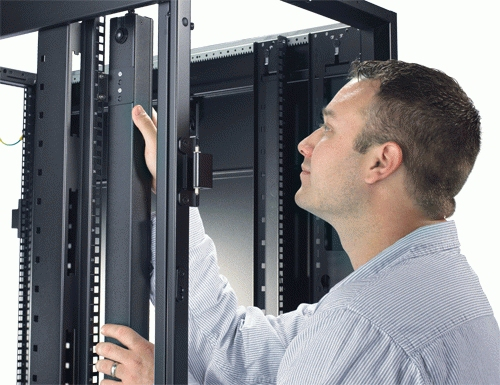

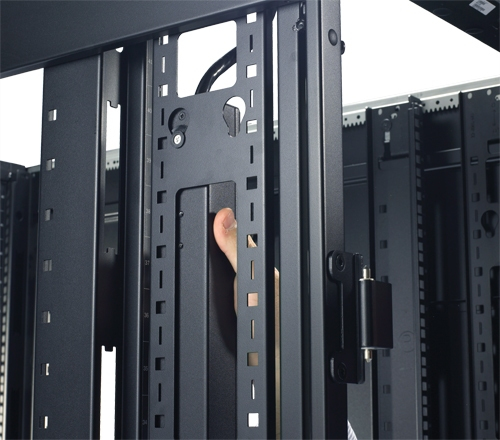

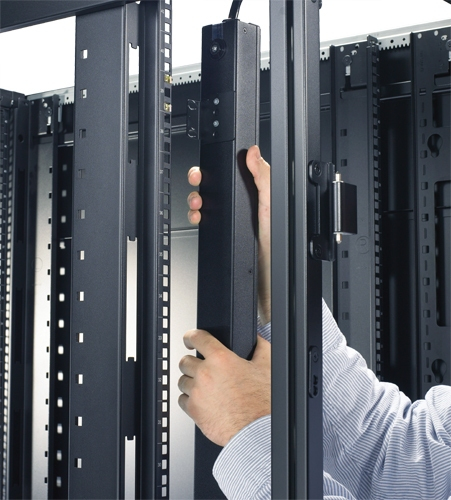

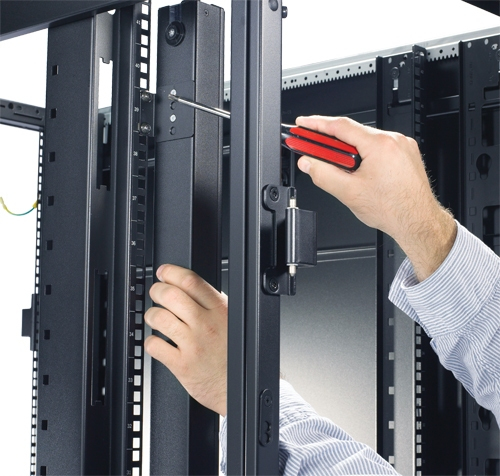

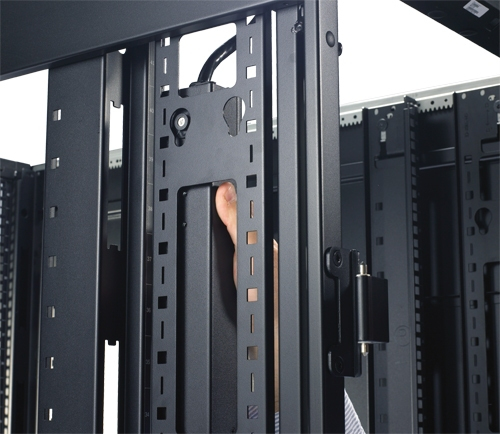

-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| Product colour | Black |
|---|
| Input connection type | NEMA L5-20P |
|---|---|
| Output connections | (24) NEMA 5-20R |
| Cable length | 3.05 m |
|---|
| Nominal input voltage | 120 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 120 V |
| Load capacity | 1920 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
| Certification | cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL |
|---|
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 56 mm |
|---|---|
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 4.86 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
