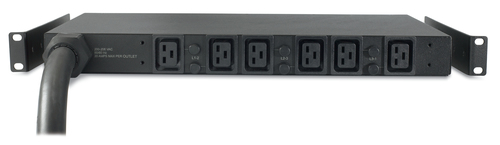

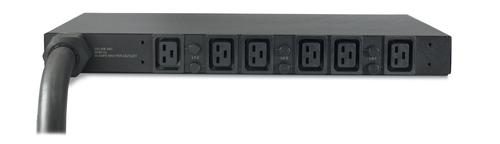

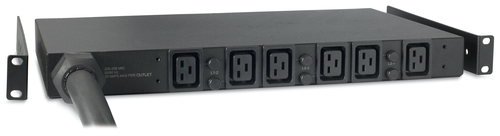

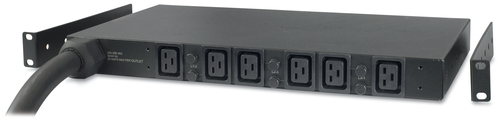

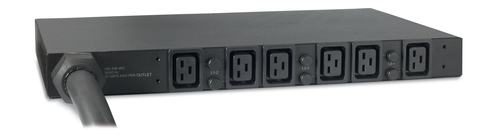

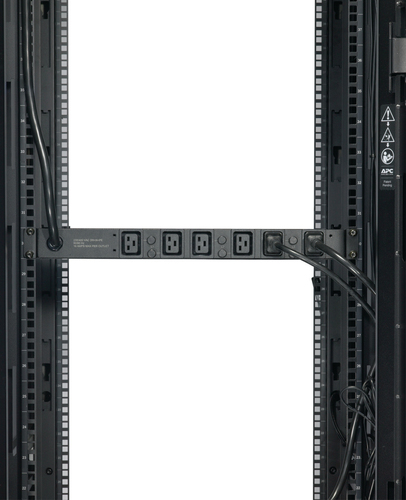

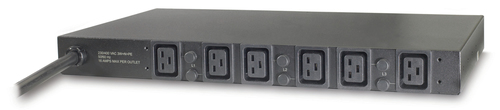

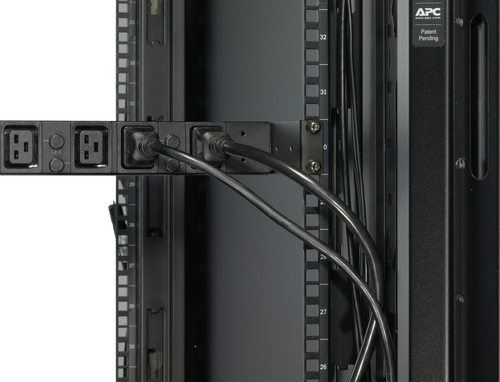

APC Basic Rack PDU AP7526 power distribution unit (PDU) 6 AC outlet(s) 1U Black
Part number AP7526
BASIC PDU RACK 1U 22KW 400V 6XC19
- Basic 1U Black
- 6 AC outlet(s) C19 coupler
- 22000 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP7526
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Features:
-High Power Density.
-Horizontal mounting capability.
-Low Cost Power Distribution.
Specifications
| PDU types | Basic |
|---|---|
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| AC outlets quantity | 6 AC outlet(s) |
|---|---|
| AC outlet types | C19 coupler |
| Input connection type | IEC 309 32A 3P+N+PE |
| Output connections | IEC 320 C19 |
| Cable length | 2.44 m |
|---|
| Nominal input voltage | 400 V |
|---|---|
| Nominal output voltage | 230 V |
| Load capacity | 22080 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum power | 22000 W |
| Certification | CE,GOST,VDE |
|---|
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 437 mm |
|---|---|
| Depth | 254 mm |
| Height | 44 mm |
| Weight | 4.84 kg |
| Package weight | 6.98 kg |
|---|---|
| Package width | 559 mm |
| Package depth | 502 mm |
| Package height | 241 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
