Overview

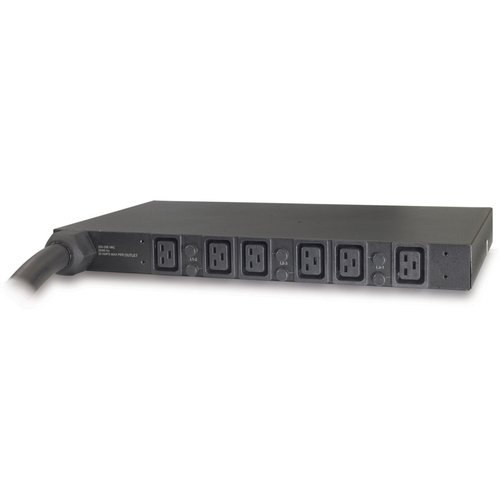

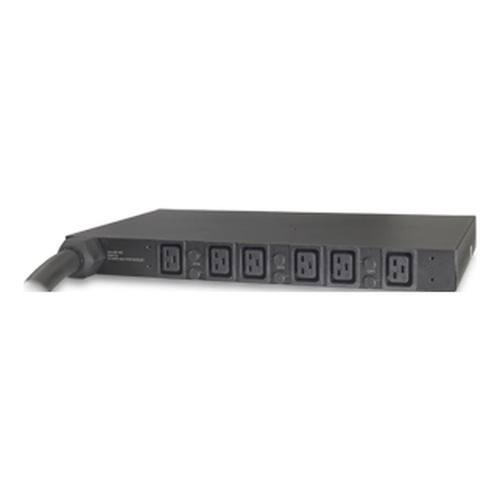

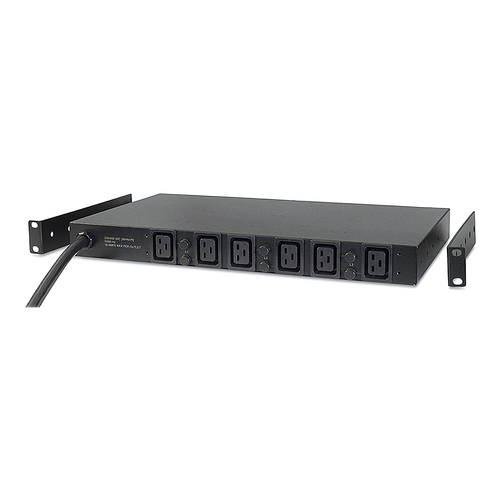

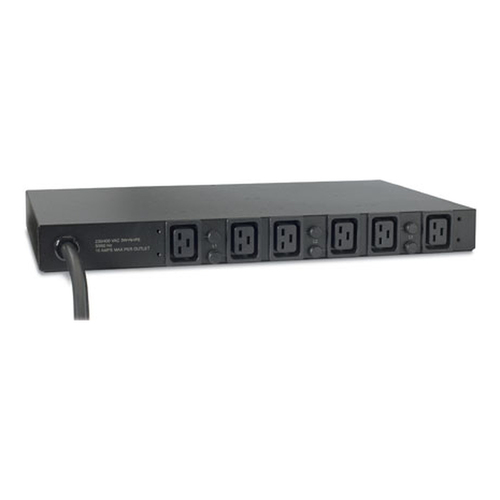

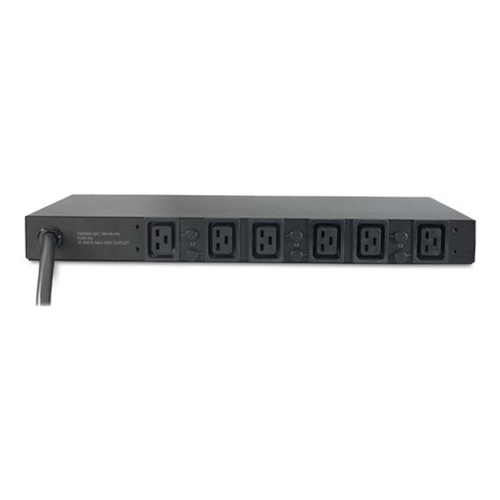

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.
Specifications
Design
| Rack capacity | 1U |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| Input connection type | Hubbell CS8365C |
|---|
| Output connections | (6) IEC 320 C19 |
|---|
Features
| Cable length | 2.4 m |
|---|
Power
| Nominal input voltage | 208 3 phases |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Output voltage | 200 V; 208 V |
|---|
| Number of phases | 3 |
|---|
| Maximum input current per phase | 50 A |
|---|
| Maximum total current draw per phase | 40 A |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | cUL listed; METI Denan; UL listed |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 437 mm |
|---|
| Depth | 254 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 7.98 kg |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| Halogen free | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Country of origin | India |
|---|
| Customs product code (TARIC) | 8544429090 |
|---|
| Total carbon footprint (kg of CO2e) | 23327.5911925625 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
