Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

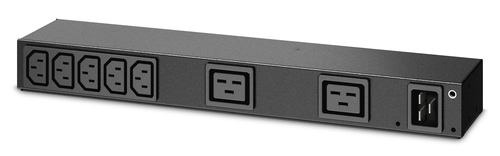

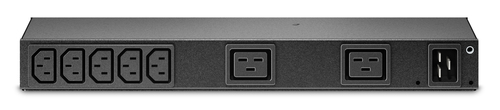

APC AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black
Part number AP6120A
RACK PDU BASIC 0U 1U 100-240V 20A 220-240V 16A 7 C13 2 C19
- Single-phase Basic 0U/1U Black
- 7 AC outlet(s) C13 coupler, C19 coupler
- 3680 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP6120A
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
Specifications
| PDU types | Basic |
|---|---|
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 7 AC outlet(s) |
|---|---|
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Nominal input voltage | 100-240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 100-240 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Compliance certificates | RoHS |
|---|---|
| Certification | UL/C-UL, VDE, CE |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 4.36 mm |
|---|---|
| Depth | 9.29 mm |
| Height | 38.8 mm |
| Weight | 1.56 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
