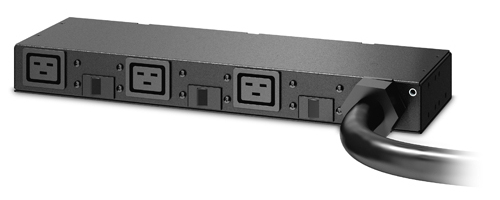

APC AP6039A power distribution unit (PDU) 3 AC outlet(s) 1U Black
Part number AP6039A
RACK PDU BASIC 0U/1U 208V 60A 3 C19
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP6039A
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Specifications
| PDU types | Basic |
|---|---|
| Type | Single-phase |
| Rack capacity | 1U |
| Product colour | Black |
| AC outlets quantity | 3 AC outlet(s) |
|---|---|
| Power plug | IEC309 |
| AC outlet types | C19 coupler |
| Cable length | 3.66 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 60 A |
| Power protection features | Overload |
| Compliance certificates | RoHS |
|---|---|
| Certification | REACH |
| Width | 388 mm |
|---|---|
| Depth | 126 mm |
| Height | 44 mm |
| Weight | 6.92 kg |
| Package weight | 9.8 kg |
|---|---|
| Package width | 500 mm |
| Package depth | 195 mm |
| Package height | 395 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
