APC BY SCHNEIDER ELECTRIC

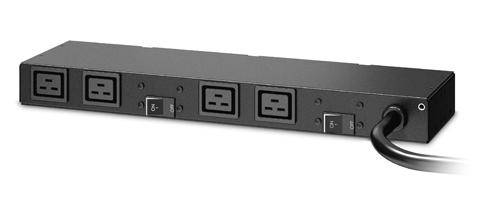

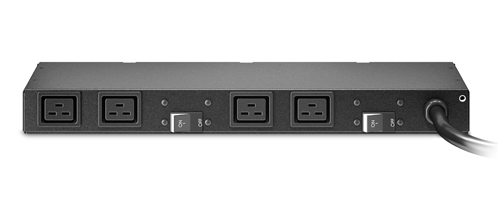

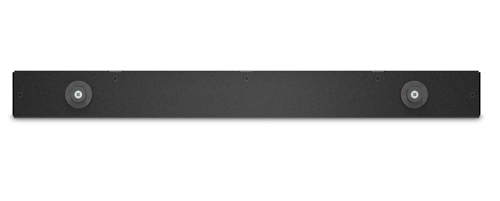

APC AP6031A power distribution unit (PDU) 4 AC outlet(s) 1U Black

Part number AP6031A

RACK PDU BASIC 0U/1U 208V 30A 4 C19

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: AP6031A
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Specifications

Design
PDU types	Basic
Rack capacity	1U
Product colour	Black

Ports & interfaces
AC outlets quantity	4 AC outlet(s)
AC outlet types	C19 coupler
Input connection type	NEMA L6-30P

Features
Cable length	3.66 m

Power
Nominal input voltage	208 V
AC input frequency	50 - 60 Hz
Maximum current	30 A
Nominal output voltage	208 V
Maximum total current draw per phase	30 A
Power protection features	Overload

Certificates
Compliance certificates	RoHS
Certification	cUL, UL, REACH

Weight & dimensions
Width	438 mm
Depth	126 mm
Height	44 mm
Weight	3.8 kg

Packaging data
Package width	473 mm
Package depth	180 mm
Package height	281 mm
Package volume	4600 cm³

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
