Overview

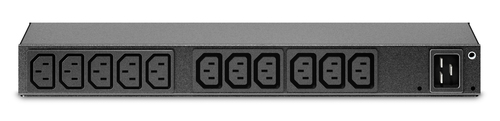

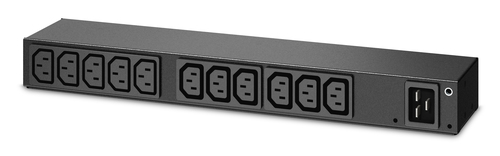

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Specifications
Design
| PDU types | Basic |
|---|
| Type | Single-phase |
|---|
| Rack capacity | 0U/1U |
|---|
| Mounting | Horizontal/Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 13 AC outlet(s) |
|---|
| Power plug | C20 coupler |
|---|
| AC outlet types | C13 coupler |
|---|
| Output connections | IEC 320 C13 |
|---|
Power
| Nominal input voltage | 100-240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Maximum current | 20 A |
|---|
| Load capacity | 3680 VA |
|---|
| Maximum input current per phase | 16 A |
|---|
| Maximum total current draw per phase | 16 A |
|---|
| Maximum power | 3680 W |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -15 - 60 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3048 m |
|---|
Weight & dimensions
| Width | 44 mm |
|---|
| Depth | 93 mm |
|---|
| Height | 388 mm |
|---|
| Weight | 1.5 kg |
|---|
Packaging data
| Package weight | 2.02 kg |
|---|
| Package width | 210 mm |
|---|
| Package depth | 76 mm |
|---|
| Package height | 436 mm |
|---|
Logistics data
| Total carbon footprint (kg of CO2e) | 38.04 |
|---|
