Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

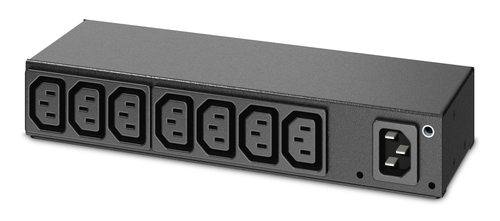

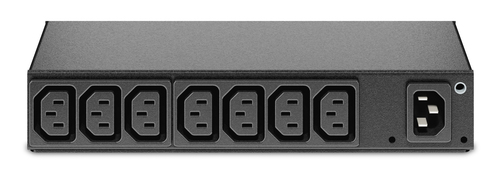

APC AP6015A power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
Part number AP6015A
RACK PDU BASIC 0U 1U 120-240V 15A 220-240V 10A 8XC13
- Basic 0U/1U Black
- 8 AC outlet(s) C13 coupler
- 2300 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP6015A
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
Specifications
| PDU types | Basic |
|---|---|
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 8 AC outlet(s) |
|---|---|
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Cable length | 3.65 m |
|---|
| Nominal input voltage | 230 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 10 A |
| Nominal output voltage | 120 - 240 V |
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Maximum power | 2300 W |
| Compliance certificates | RoHS |
|---|---|
| Certification | VDE, CE |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
