Overview

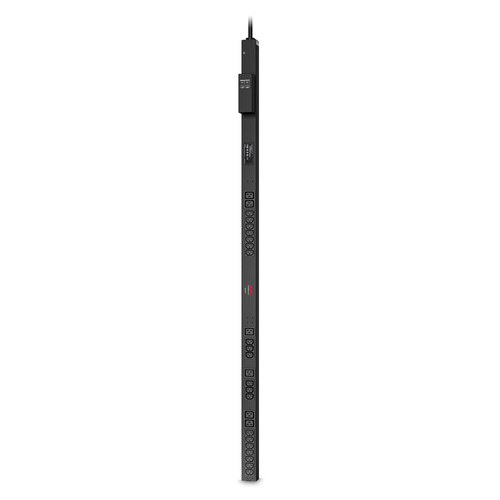

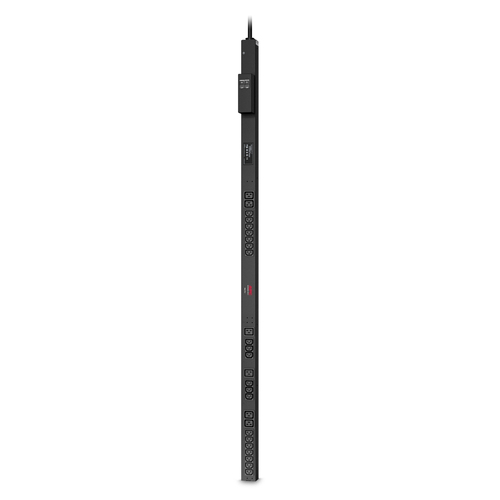

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 32A and operates at 230V. The PDU features 20 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with an IEC 60309 32A 2P + E plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.
Specifications
Design
| PDU types | Basic |
|---|
| Rack capacity | 0U |
|---|
| Mounting | Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 26 AC outlet(s) |
|---|
| Power plug | IEC309 |
|---|
| AC outlet types | C13 coupler, C19 coupler |
|---|
| Input connection type | IEC 60309 32 A 2P + E |
|---|
Power
| Nominal input voltage | 230 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Maximum current | 32 A |
|---|
| Nominal output voltage | 230 V |
|---|
| Output voltage | 230 V |
|---|
| Power protection features | Overload |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | CE; EAC; IRAM; VDE |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -15 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Weight & dimensions
| Width | 56 mm |
|---|
| Depth | 43 mm |
|---|
| Height | 1626 mm |
|---|
| Weight | 6.18 kg |
|---|
Packaging data
| Package weight | 8 kg |
|---|
| Package width | 226 mm |
|---|
| Package depth | 135 mm |
|---|
| Package height | 1875 mm |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
|---|
| Halogen free | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Country of origin | India |
|---|
| Customs product code (TARIC) | 8544429090 |
|---|
| Total carbon footprint (kg of CO2e) | 4481.3674802844 |
|---|
