Products › Power & Rack Equipment

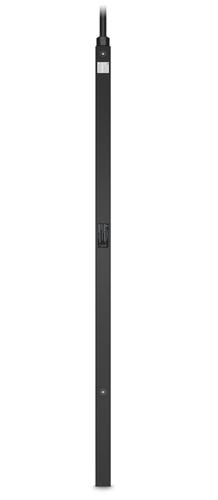

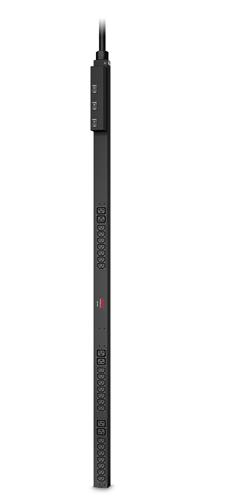

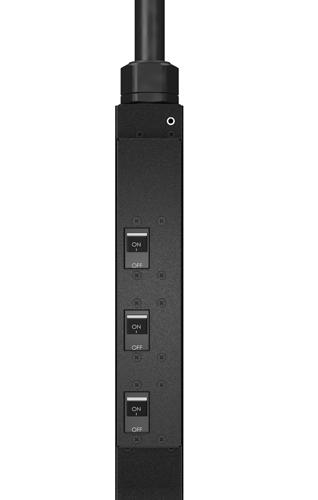

APC AP6007A power distribution unit (PDU) 27 AC outlet(s) Black
Part number AP6007A
RACK PDU BASIC VERTICAL 208V 60A 21 C13 6 C19
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP6007A
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Total Cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Marketing Features
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Specifications
| PDU types | Basic |
|---|---|
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 27 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 60A 3P+PE |
| Cable length | 3.05 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 60 A |
| Nominal output voltage | 208 V |
| Maximum input current per phase | 60 A |
| Maximum total current draw per phase | 60 A |
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL, UL |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Width | 56 mm |
|---|---|
| Depth | 43 mm |
| Height | 1626 mm |
| Weight | 9.18 kg |
| Package weight | 11 kg |
|---|---|
| Package width | 226 mm |
| Package depth | 135 mm |
| Package height | 1875 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
