Overview

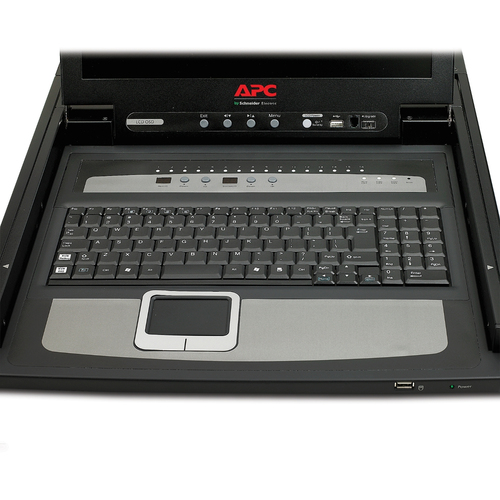

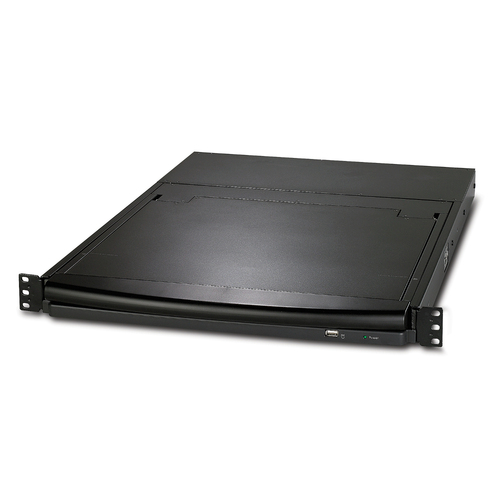

"The Rack LCD Console with Integrated KVM Switch combines the functionality of Rack LCD Console and Analog KVM switches in one convenient package optimizing U space in the rack environment, eliminating cable clutter, and offering a value of two products functionality in one package" "Keyboard is a US English keyboard layout"
Specifications
Display
| Display diagonal | 43.2 cm (17") |
|---|
| Display | LCD |
|---|
Technical details
| Form factor | 1U |
|---|
| Product colour | Black |
|---|
| Power requirements | 120-240V, 50/60 Hz |
|---|
| Cable length | 1.82 m |
|---|
| Total carbon footprint (kg of CO2e) | 49.13262451035255 |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Sustainable packaging | No |
|---|
| Mounting | front |
|---|
| Proposition 65 | Yes |
|---|
| Halogen free | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
| Rack capacity | 1U |
|---|
| Country of origin | Taiwan |
|---|
Ports & interfaces
| I/O ports | IEC-320 C14 |
|---|
| Interface | USB |
|---|
Keyboard
| Built-in touchpad | Yes |
|---|
Certificates
| Certification | cUL listed; C-Tick; CE; Industry Canada; KCC; UL listed; VDE; TAA compliance |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
Power
| AC adapter input voltage | 120-240 V |
|---|
| Input connection type | IEC 60320 C14 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Other features
| Dimensions (WxDxH) | 483 x 711 x 43 mm |
|---|
Weight & dimensions
| Width | 483 mm |
|---|
| Height | 43 mm |
|---|
| Depth | 614 mm |
|---|
| Weight | 14 kg |
|---|
Packaging data
| Package weight | 20.1 kg |
|---|
| Package dimensions (WxDxH) | 665 x 830 x 130 mm |
|---|
Logistics data
| Customs product code (TARIC) | 8471800000 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
