APC 16 Port Multi-Platform Analog KVM KVM switch Rack mounting Black
Part number AP5202
16PORT KVM MULTI-PLATFORM ANALOG
- Rack mounting 1U Black
- Keyboard port type: PS/2 Mouse port type: PS/2 Video port type: VGA
- 1920 x 1440 pixels
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP5202
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
Manage multiple servers with just one keyboard, monitor and mouse.

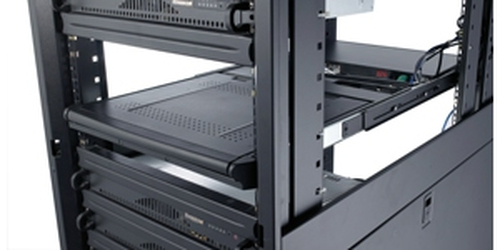

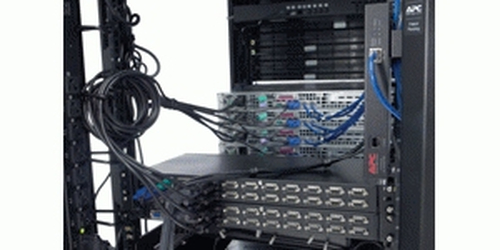

APC’s 8- and 16-port RackMount KVM switches fit on the desktop or mount in 1U of rack space. Daisy-chain compatible units and manage up to 512 servers through one keyboard, monitor, and mouse. The KVM Switches support multiple platforms (PS/2, USB, or SUN), use slimmer cables for better cable management, are firmware upgradeable, and allow servers to be connected and disconnected without powering down the KVM. LEDs on the front of all units display which channels are active. Use hotkeys or the on-screen display to switch easily among connected servers. Reduce hardware costs, save space, reduce heat generation, and lower power consumption using APC RackMount KVMs. Click here to compare RackMount KVM Switches and select the correct cables for your application.
Includes: Configuration cable, Country-specific detachable power cord, Documentation CD, KVM cables not included, Rack Mounting brackets, User Manual.
- Cascading capabilities
- On-Screen display (OSD) capability
Specifications
| Keyboard port type | PS/2 |
|---|---|
| Mouse port type | PS/2 |
| Video port type | VGA |
| Maximum resolution | 1920 x 1440 pixels |
|---|
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Certification | AS/NZS 3548 (C-Tick) Class A,CE,FCC Part 15 Class A,ICES-003,UL 60950,VCCI |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight | 4.55 kg |
|---|
| Package dimensions (WxDxH) | 508 x 330 x 127 mm |
|---|---|
| Package weight | 5 kg |
| Connectivity technology | Wired |
|---|---|
| I/O ports | 1 x mini-DIN (PS/2) F 1 x mini-DIN (PS/2) F 1 x 15-pin D-Sub (HD-15) F VGA/SVGA |
| Dimensions (WxDxH) | 432 x 210 x 44 mm |
| Ports quantity | 16 |
| Harmonized System (HS) code | 85176200 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
