Products › Input & Output Devices
APC BY SCHNEIDER ELECTRIC

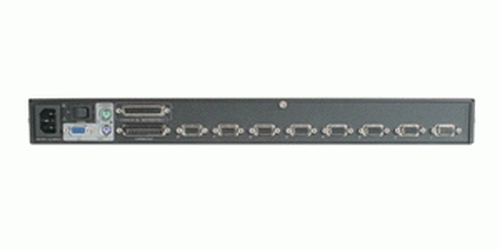

APC 8 Port Multi-Platform Analog KVM KVM switch Rack mounting
Part number AP5201
8PORT KVM MULTI-PLATFORM ANALOG
- Rack mounting 1U
- Keyboard port type: PS/2 Mouse port type: PS/2 Video port type: VGA
- 1920 x 1440 pixels
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP5201
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
Manage multiple servers with just one keyboard, monitor and mouse.
Includes: Configuration cable, Country-specific detachable power cord, Documentation CD, KVM cables not included, Rack Mounting brackets, User Manual.
- Cascading capabilities
- On-Screen display (OSD) capability
Specifications
| Keyboard port type | PS/2 |
|---|---|
| Mouse port type | PS/2 |
| Video port type | VGA |
| Maximum resolution | 1920 x 1440 pixels |
|---|
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Certification | AS/NZS 3548 (C-Tick) Class A,CE,FCC Part 15 Class A,ICES-003,IEC 60950,UL 60950,VCCI |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight | 4.55 kg |
|---|
| Package dimensions (WxDxH) | 508 x 330 x 127 mm |
|---|---|
| Package weight | 5 kg |
| Connectivity technology | Wired |
|---|---|
| Dimensions (WxDxH) | 432 x 210 x 44 mm |
| Ports quantity | 8 |
| Harmonized System (HS) code | 85176200 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
