Overview

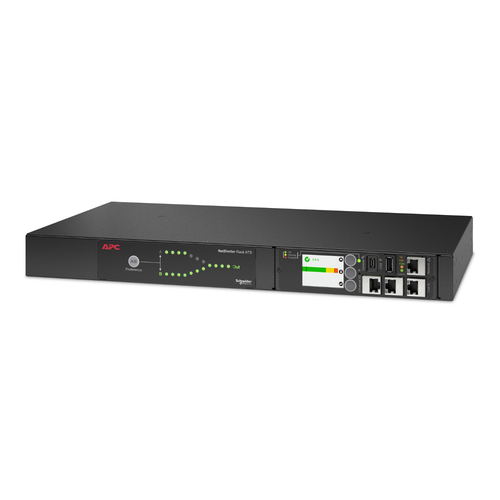

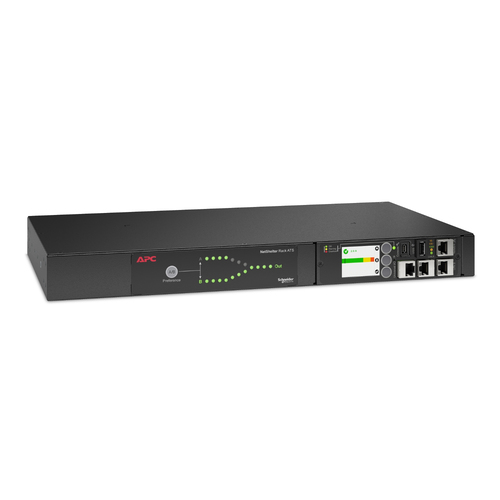

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4434A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4434A is single phase 1U Rack ATS with 20A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C20- inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Specifications
Power
| Input operation voltage (min) | 187 V |
|---|
| Input operation voltage (max) | 228 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Input current | 20 A |
|---|
| Output operation voltage (min) | 208 V |
|---|
| Output operation voltage (max) | 208 V |
|---|
| Output current | 20 A |
|---|
Design
| Form factor | Rackmount |
|---|
| Rack capacity | 1U |
|---|
| Product colour | Black |
|---|
| Certification | cUL listed; CE; UL listed |
|---|
Ports & interfaces
| AC inlet type | C20 coupler |
|---|
| AC outlet types | IEC 60320 |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
Logistics data
| Customs product code (TARIC) | 8537109899 |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
Technical details
| Sustainability certificates | UL ECOLOGO |
|---|
| Sustainability compliance | Yes |
|---|
| Total carbon footprint (kg of CO2e) | 1230.5930512182 |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| Mounting | front; rear; horizontal |
|---|
| Removable battery | Yes |
|---|
| Proposition 65 | Yes |
|---|
| Halogen free | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Weight & dimensions
| Width | 432 mm |
|---|
| Depth | 236 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 3.74 kg |
|---|
Packaging data
| Package width | 600 mm |
|---|
| Package depth | 356 mm |
|---|
| Package height | 114 mm |
|---|
| Package weight | 5.51 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
