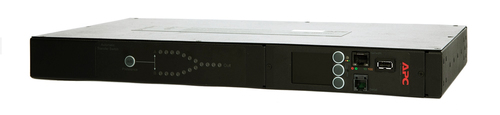

APC AP4422 Automatic Transfer Switch (ATS)
Part number AP4422
RACK ATS 230V 16A 2XIEC 309 IN 1XIEC 309 OUT
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP4422
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
Provides redundant rack mount power to single-corded equipment.
10 kAIC Overcurrent Protection
Provides protection in the event of a significant overcurrent event.
Command line interface
Offers simultaneous remote management access through Telnet and SSH
Current Monitoring
Monitors the aggregate current draw per power distribution unit.
Cyber security
A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
RoHS
Certifies that electronic devices don't contain hazardous metals and flame retardants
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
Specifications
| Input operation voltage (min) | 230 V |
|---|---|
| Input operation voltage (max) | 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 16 A |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output current | 16 A |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Display | LCD |
| AC outlets quantity | 2 AC outlet(s) |
|---|
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight | 4.21 kg |
|---|
| Package width | 600 mm |
|---|---|
| Package depth | 349 mm |
| Package height | 114 mm |
| Package weight | 5.95 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
