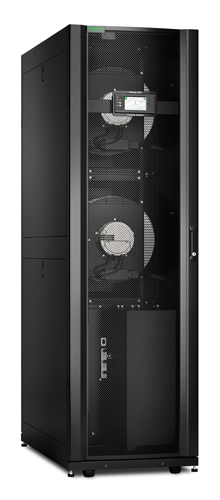

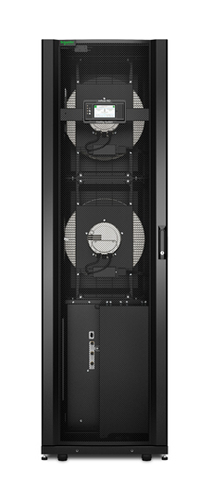

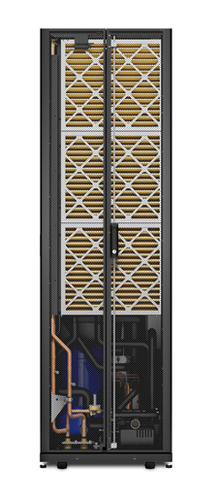

APC InRow RD, 600mm Air Cooled, 200-240V, 50/60Hz

Overview

Active Airflow Control

Monitors and actively adjust cooling unit airflow in containment systems, while providing visibility to effective cooling to critical IT equipment.

Active response control

Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and status of the unit is provided.

Air filtration

Removes dirt and other particulates from the intake air for cleaner supply air.

Architecturally neutral

Unobtrusive design and coloring, blends in with the surroundings.

Capacity Control

Cooling system will operate from 0 - 100% of the rated capacity to maintain rack inlet temperatures and reduce operational costs at varying heat loads.

Casters

Provides flexibility to move the unit to wherever cooling is required.

Containment system compatible

The unit can be combined with a Rack or Hot Aisle Containment System to eliminate hot air mixing and maximize cooling efficiency

Continuous current monitoring

Permits a continuous monitoring of the compressor’s absorbed current to signal possible discrepancies with the default values (Optional).

Direct drive motors

Stress on bearings is nearly eliminated, increasing useful life. Allows integral fan/motor assembly to be factory balanced, which lowers vibration and expedites startup.

Ease of Use

Simplifies future planning by allowing side to side equipment to be placed anywhere in the data center.

Easy to install

Innovative design allows for fast, easy installation by almost anybody.

Efficiency

Increases the capacity of the air conditioner by supplying a warmer return air temperature.

Electronic expansion valve

Refrigerant flow optimization at any load and temperature conditions. Continuous indirect refrigerant charge monitoring

Electronically Commutated Fans

Provide the highest efficiency and reduce total power consumption by matching the airflow requirements to the heat load of the data center.

Enclosure system compatible

Specifically designed to work with Netshelter Enclosures.
