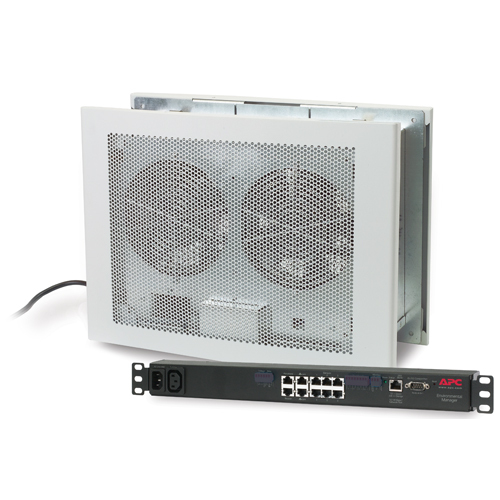

APC ACF301EM window/through-wall air conditioner Monoblock

Overview

Combined together, the Wiring Closet Ventilation Unit and the Environmental Manager provides users the ability to remotely monitor and control the cooling of their networking closet.

Programmable input/output contacts>

Allows device contacts to be connected to the air conditioner and mapped to customer outputs or system alarms.

Network interface

Provides management by connecting the device directly to the network with a dedicated IP address, avoiding the need for a proxy such as a server. Management is available via Web browser, Telnet or SSH. Notification features inform you of problems as they occur.

Dual fans

Provides fault tolerance in the event of a fan failure.

Remote management

Remote monitoring of key alarm conditions such as fan failure and leak detection via SNMP, telnet, and web browser is possible with optional Remote Monitoring Unit, specifically designed for the High-Density

Cooling Enclosure.

Temperature/humidity probe

Monitors the room temperature and relative humidity up to 12 feet away. Can be used for controlling set points.

Predictive failure notification

Maximizes system availability by providing early warning of required fan or filter replacement.

LED status indicators

Quickly understand unit and power status with visual indicators.

Dry contact output

Provides remote notification of failures when used with APC environmental monitoring unit or system.

Multiple mounting methods

Flexible design allows for both dry wall and ceiling mount installations.

Easy to install

Innovative design allows for fast, easy installation by almost anybody.

Hardwire capable

For installations where hard wiring is required or prefered.

Architecturally neutral

Unobtrusive design and coloring, blends in with the surroundings.
