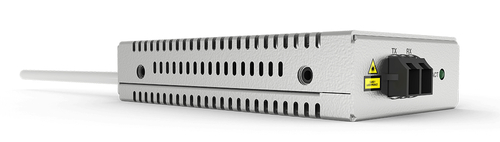

The Allied Telesis UMC2000/LC Gigabit mini media converter is small and flexible, with a multi-mode LC fiber connector to convert USB (-A or -C) to 1000SX/LC. It is also TAA compliant.
Specifications
Network
Maximum data transfer rate
1000 Mbit/s
Converter output interface
1000Base-SX
Networking standards
IEEE 802.1Q, IEEE 802.1p
Ethernet interface type
Gigabit Ethernet
Data transfer rate
1000 Mbit/s
Jumbo frames support
Yes
VLAN support
Yes
Performance
Maximum transfer distance
500 m
Wavelength
850 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-9.5 dBmW
Tx power (max)
-4 dBmW
Rx power (min)
-17 dBmW
Features
Internal
No
LED indicators
Yes
Product colour
Grey
Ports & interfaces
Connectivity technology
Wired
Fiber optic connector
LC
Weight & dimensions
Width
54.9 mm
Depth
101.6 mm
Height
21.8 mm
Weight
170 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
