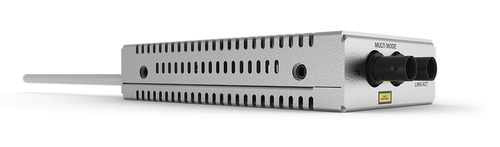

The Allied Telesis UMC200/ST Fast Ethernet mini media converter is small and flexible, with a multi-mode ST fiber connector to convert USB (-A or -C) to 100SX/ST. It is also TAA compliant.
Specifications
Network
Maximum data transfer rate
100 Mbit/s
Converter output interface
100Base-SX
Networking standards
IEEE 802.1Q, IEEE 802.1p
Ethernet interface type
Fast Ethernet
Data transfer rate
100 Mbit/s
Jumbo frames support
Yes
VLAN support
Yes
Performance
Maximum transfer distance
2000 m
Wavelength
1310 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-20 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Features
Internal
No
LED indicators
Yes
Product colour
Grey
Ports & interfaces
Connectivity technology
Wired
Fiber optic connector
ST
Weight & dimensions
Width
54.9 mm
Depth
101.6 mm
Height
21.8 mm
Weight
170 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
