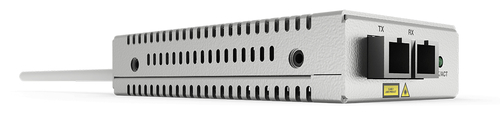

The Allied Telesis UMC2000/SC Gigabit mini media converter is small and flexible, with a multi-mode SC fiber connector to convert USB (-A or -C) to 1000SX/SC. It is also TAA compliant.
Specifications
Network
Maximum data transfer rate
100 Mbit/s
Converter input interface
100Base-TX
Converter output interface
100Base-SX
Networking standards
IEEE 802.1Q
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Fiber ethernet cabling technology
100BASE-SX
Data transfer rate
100 Mbit/s
Jumbo frames support
Yes
VLAN support
Yes
Supported network protocols
Pv4 IP/ TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6
Performance
Maximum transfer distance
2000 m
Wavelength
1310 nm
Fiber mode structure
Multi-mode
Tx power (min)
-20 dBmW
Tx power (max)
14 dBmW
Rx power (min)
32 dBmW
Features
Internal
No
LED indicators
Activity, Link
Product colour
Silver
Ports & interfaces
Connectivity technology
Wired
Fiber optic connector
SC
Power
Input voltage
5 V
Weight & dimensions
Width
54.9 mm
Depth
101.6 mm
Height
21.8 mm
Weight
170 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Certificates
Safety
UL60950-1, EN60950-1
Certification
FCC Class A
EN55022
EB55032
CISPR 22 Class A
C-TICK
VCCI
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
