ALLIED TELESIS INC.

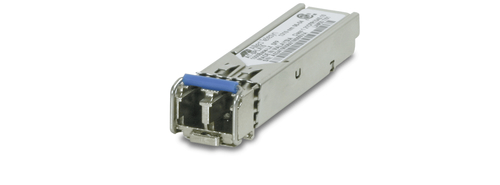

Allied Telesis SPZX80 network transceiver module 1250 Mbit/s mini-GBIC/SFP 1550 nm
Part number AT-SPZX80
80KM 1550NM EXT TEMP 1000BASE ZX SFP
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-SPZX80
- Condition
- New
- Category
- Network Devices › Transceivers
- 1GPA category
- Hardware
Overview
The Allied Telesis SP Series delivers flexible, full-duplex Ethernet connectivity. These hot-swappable fiber interfaces simply plug into the SFP slot on all SFP-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.
Specifications
| Maximum data transfer rate | 1250 Mbit/s |
|---|---|
| Interface type | mini-GBIC/SFP |
| Fiber optic connector | LC |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Tx power (min) | 5 dBmW |
| Tx power (max) | -24 dBmW |
| Rx power (min) | 0 dBmW |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Grey |
|---|---|
| Plug and Play | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
