ALLIED TELESIS INC.

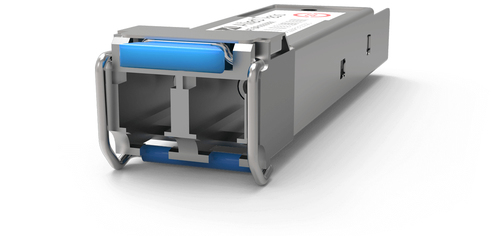

Allied Telesis AT-SPLX10A network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm
Part number AT-SPLX10A
TAA, SFP/LC 1G, SINGLE MODE, 10KM, 1310NM
- SFP Fiber optic 1000 Mbit/s
- Wavelength: 1310 nm
- Hot-swap
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-SPLX10A
- Condition
- New
- Category
- Network Devices › Network Interface
- 1GPA category
- Hardware
Overview
Gigabit Small Form-Factor Pluggable Modules
The Allied Telesis SP Series delivers flexible, full-duplex Ethernet connectivity.
These hot-swappable fiber and copper interfaces simply plug into the SFP
slot on all SFP-compatible devices. Configuration can be optimized to meet a
wide variety of distance and service requirements.
Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
| Product colour | Silver |
|---|---|
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
|---|
| Quantity per pack | 1 pc(s) |
|---|
| Harmonized System (HS) code | 85369010 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
