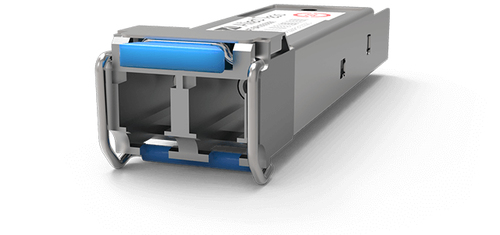

Allied Telesis AT-SPFX30/I network transceiver module Fiber optic 100 Mbit/s SFP
Part number AT-SPFX30/I
TAA, SFP/LC 100LX, SINGLE-MODE, 30KM, 1310 NM
- Compact size
- Flexible architecture
- Plug and Play ease-of-use
- Self-locking mechanism
- MSA Compliant
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-SPFX30/I
- Condition
- New
- Category
- Network Devices › Network Interface
- 1GPA category
- Hardware
Overview
Small Form-Factor Pluggable Modules
The Allied Telesis 100Mbps SP Series offers the latest industry standard in flexible, full-duplex, Fast Ethernet connectivity. These hot-swappable interfaces simply plug into the SFP slot on all SFP-compatible products. Configuration can be optimized to meet a wide variety of distance and service requirements.
Options
Allied Telesis SP 100Mbps Series Small Form-Factor Pluggables (SFPs) offers short-haul, long-haul, Bi-Directional (BiDi), and Copper solutions. This flexibility allows network managers to easily extend network distance and bandwidth.
Using an SFP BiDi transceiver can upgrade transmission capacity on a typical network—without installing new fibers—by utilizing a single fiber for both the send and receive signals.
Compatibility
SP 100Mbps Series SFPs are Multi-Sourcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP 100Mbps Series to be used with other MSA-compliant platforms that support SFP uplink connections
Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 30000 m |
| Tx wavelength (min) | 1310 nm |
| Rx wavelength (max) | 1310 nm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 23 dB |
| Product colour | Silver |
|---|---|
| Plug and Play | Yes |
| Operating temperature (T-T) | -40 - 105 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Harmonized System (HS) code | 85369010 |
|---|
