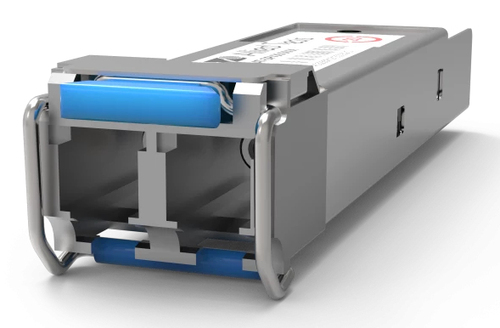

Allied Telesis B-AT-SPFX/2-90 network transceiver module Fiber optic 100 Mbit/s SFP
Part number AT-SPFX/2-90
FED, 2KM 100FX (LC) SMALL FORM PLUGGABLE, MMF
- Compact size
- Flexible architecture
- Plug and play for ease of use
- Self-locking mechanism
- MSA compliant
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-SPFX/2-90
- Condition
- New
- Category
- Network Devices › Transceivers
- 1GPA category
- Hardware
Overview
SP100Mbps Series Small Form-Factor Pluggable Modules
The Allied Telesis 100Mbps SP Series offers the latest industry standard in flexible, full-duplex, Fast Ethernet connectivity. These hot-swappable interfaces simply plug into the SFP slot on all SFP-compatible products. Configuration can be optimized to meet a wide variety of distance and service requirements.
Options
Allied Telesis SP 100Mbps Series Small Form-Factor Pluggables (SFPs) offers short-haul and long-haul. This flexibility allows network managers to easily extend network distance and bandwidth.
Compatibility
SP 100Mbps Series SFPs are MultiSourcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP 100Mbps Series to be used with other MSA-compliant platforms that support SFP uplink connections.
Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 2000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1310 nm |
| Link budget | 11 dB |
| Ethernet interface type | Fast Ethernet |
| Fiber ethernet cabling technology | 100BASE |
| Duplex system | Full |
| Product colour | Metallic |
|---|---|
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Compliance certificates | Trade Agreements Act (TAA) |
|---|
| Minimum operating temperature | 0 °C |
|---|---|
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 80% |
| Quantity per pack | 1 pc(s) |
|---|
| Transmit power range | -20 - -14 dBmW |
|---|---|
| RX sensitivity | -31 dB |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
